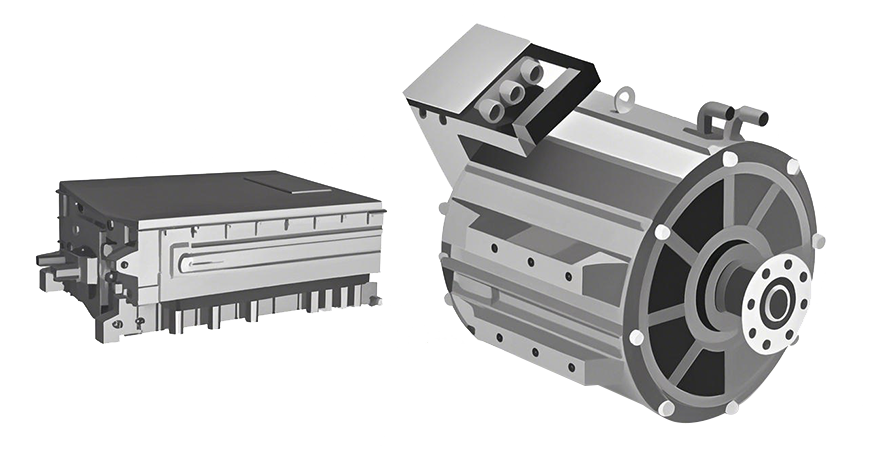

Driving Motor
Applicable Vehicle Models: 10m - 12m Buses
Driving Motor Parameters
| Motor Type | Permanent Magnet Synchronous |
| Voltage Platform (VDC) | 600 |
| Motor Rated/Peak Power (kW) | 150/250 |
| Motor Rated/Peak Torque (N.m) | 1400/3000 |
| Motor Rated/Peak Speed (r/min) | 1023/3000 |
Multi-in-One Controller Parameters
| Rated Capacity/Peak Capacity (kVA) | 355 kVA/530 kVA |
| Rated Current/Peak Current | 600 A/900 A |
| Multi-in-One Functions | MCU+DCDC+PDU+EPS+ACM |
| Other Optional Accessories | VCU, Three-Phase Wire |

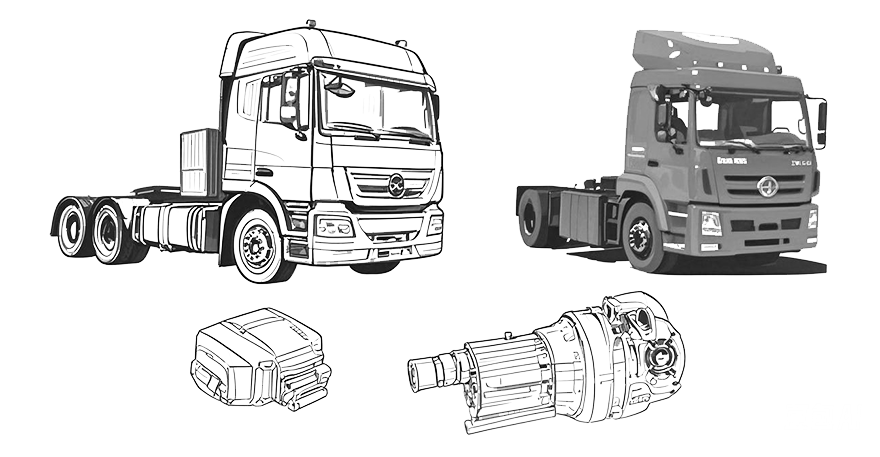

Applicable Vehicle Models: 31–49T Pure Electric Heavy-Duty Truck
Driving Motor Parameters
| Motor Type | Permanent Magnet Synchronous Hairpin Motor |
| Voltage Platform (VDC) | 600 |
| Voltage Range (VDC) | 400–700 |
| Motor Rated/Peak Power (kW) | 280/430 |
| Motor Rated/Peak Torque (N.m) | 440/800 |
| Motor Rated/Peak Speed (r/min) | 6077/10000 |
Controller Parameters
| Rated Capacity/Peak Capacity | 355 kVA/530 kVA |
| Rated Current/Peak Current | 600 A/900 A@60s |
Reducer Parameters
| Gear Ratio | 3.011 |
Matching Transmission Parameters
| Maximum Output Torque (Nm) | 20700 |
| Gear Ratio | 8.625/3.824/1.927/1 |
| Gearshift Type | Electric Gearshift |
Specification Parameters
| Length × Width × Height (mm) | L1227×W600×H579(±5) |
| Weight (kg) | 338 (Motor + Reducer + Transmission) |

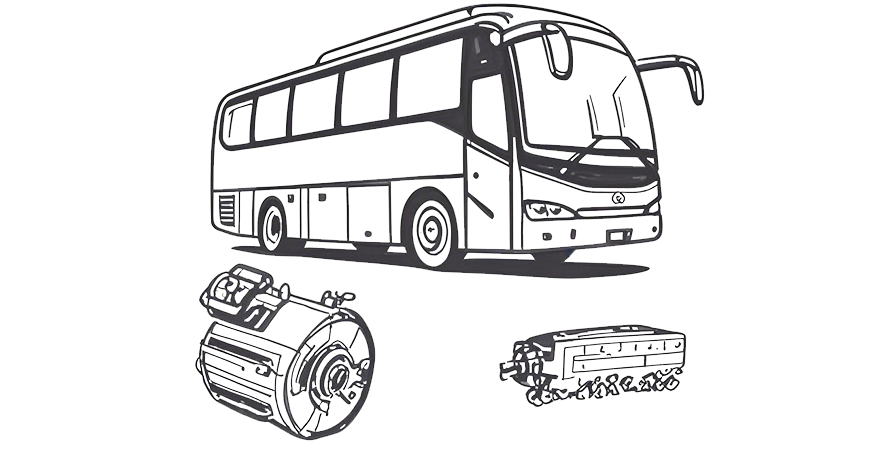

Applicable Vehicle Models: 8m/8.5m Buses
Driving Motor Parameters
| Motor Type | Permanent Magnet Synchronous |
| Voltage Platform (VDC) | 600 |
| Motor Rated/Peak Power (kW) | 150/250 |
| Motor Rated/Peak Torque (N.m) | 1400/3000 |
| Motor Rated/Peak Speed (r/min) | 1023/3000 |
Multi-in-One Controller Parameters
| Rated Capacity/Peak Capacity (kVA) | 355 kVA/530 kVA |
| Rated Current/Peak Current | 600 A/900 A |
| Multi-in-One Functions | MCU+DCDC+PDU+EPS+ACM |
| Other Optional Accessories | VCU, Three-Phase Wire |

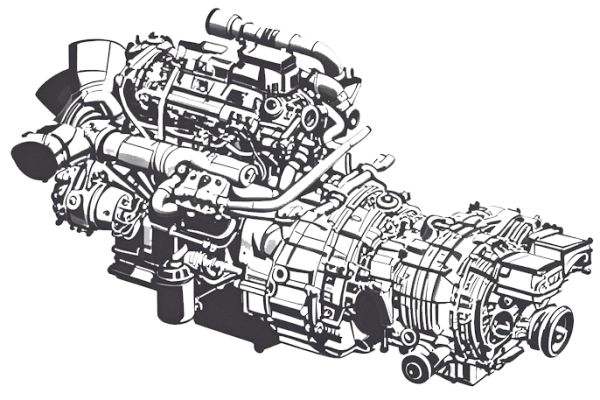

OEM & ODM Deliveries: Hybrid System With eCVT
Driving Motor Parameters
Model | 230-S | 230-K | 230-S | |
| Assembly Parameters | Maximum Output Torque of Assembly (N・m） | 7000 | 7000 | 7000 |
| Dimensions (Length×Width×Height mm) | L1742×W733×H927 | L1768×W790×H1013 | L1970×W750×H900 | |
| System Weight (kg) | 805 | 830 | 945 | |
| Engine Parameters | Model | 4220 | 5248 | 6270 |
| Displacement（L） | 4.3 | 5.132 | 6.5 | |
| Rated Power/Speed（kW/r/min） | 162/2300 | 182/2200 | 199/2300 | |
| Maximum Torque/Speed（N・m/r/min） | 750/1200-1700 | 900/1100-1800 | 1050/1200~1700 | |
| Maximum No-Load Speed（rpm） | 2580 | 2460 | 2300 | |
| Minimum Fuel Consumption in Universal Characteristics (g/kWh） | ≤192 | ≤190 | ≤192 | |
| Emission Standard | China VI | China VI | China VI | |
| Dimensions (Length×Width×Height mm)（mm） | L840×W733×H927 | L890×W790×H1013 | L1100×W750×H900 | |
| Motor Parameters | E1/E2 Motor Rated/Peak Power（kW） | 115/157 | 115/157 | 115/157 |
| E1/E2 Motor Rated/Peak Torque（N・m） | 220/300 | 220/300 | 220/300 | |
| E1/E2 Motor Rated/Maximum Speed（r/min） | 5000/15000 | 5000/15000 | 5000/15000 | |
| Voltage Platform（V） | 600 | 600 | 600 | |
| Cooling Method | Water Cooling | Water Cooling | Water Cooling |
